2 Theem Scissor Parking Platform Underground Car Lift
Feature
1.Rau hom qauv, peb txhua tus ua raws li cov neeg siv khoom xav tau.Peb yuav tsum paub lub peev xwm thauj khoom, nqa qhov siab thiab lub platform loj koj xav tau.Tom qab ntawd peb yuav xam tus nqi rau koj.
2.Standard ramp ua rau nws yooj yim rau thauj thiab unload.
3.Qhov chaw twj tso kua mis zoo ua rau nws nqa thiab poob zoo heev.
4.Explosion-proof li qub, tiv thaiv hydraulic yeeb nkab, anti-hydraulic yeeb nkab rupture.
5.Anti-poob ntaus ntawv, tiv thaiv kev poob ntawm lub platform.
6.Nyob rau hauv av ob lub lawj tsheb elevator tsim rau cov neeg siv khoom.
7.Powder spray txheej nto kho rau sab hauv tsev siv kub galvanizing rau sab nraum zoov siv.
Specification
| Khoom Parameters | |
| Qauv No. | CSL-3 |
| Lifting peev | 2500 kg ib txheej platform |
| Lifting Qhov siab | 2600 hli |
| Self Kaw Qhov siab | 6 70mm |
| Vertical Ceev | 4-6 M / min |
| Sab nraud Dimension | 5300 x 2700 x 3280 mm |
| Tsav hom | 2 Ea Hydraulic Lub tog raj kheej |
| Tsheb Loj | 5000 x 2100 x 2000 mm |
| Chaw nres tsheb hom | 1 hauv av, 1 underground |
| Chaw nres tsheb | 2 tsheb |
| Nce / Tso Sijhawm | 70 s / 60 s |
| Fais fab mov / Lub cev muaj zog | 380V, 50Hz, 3Ph, 5.5Kw |

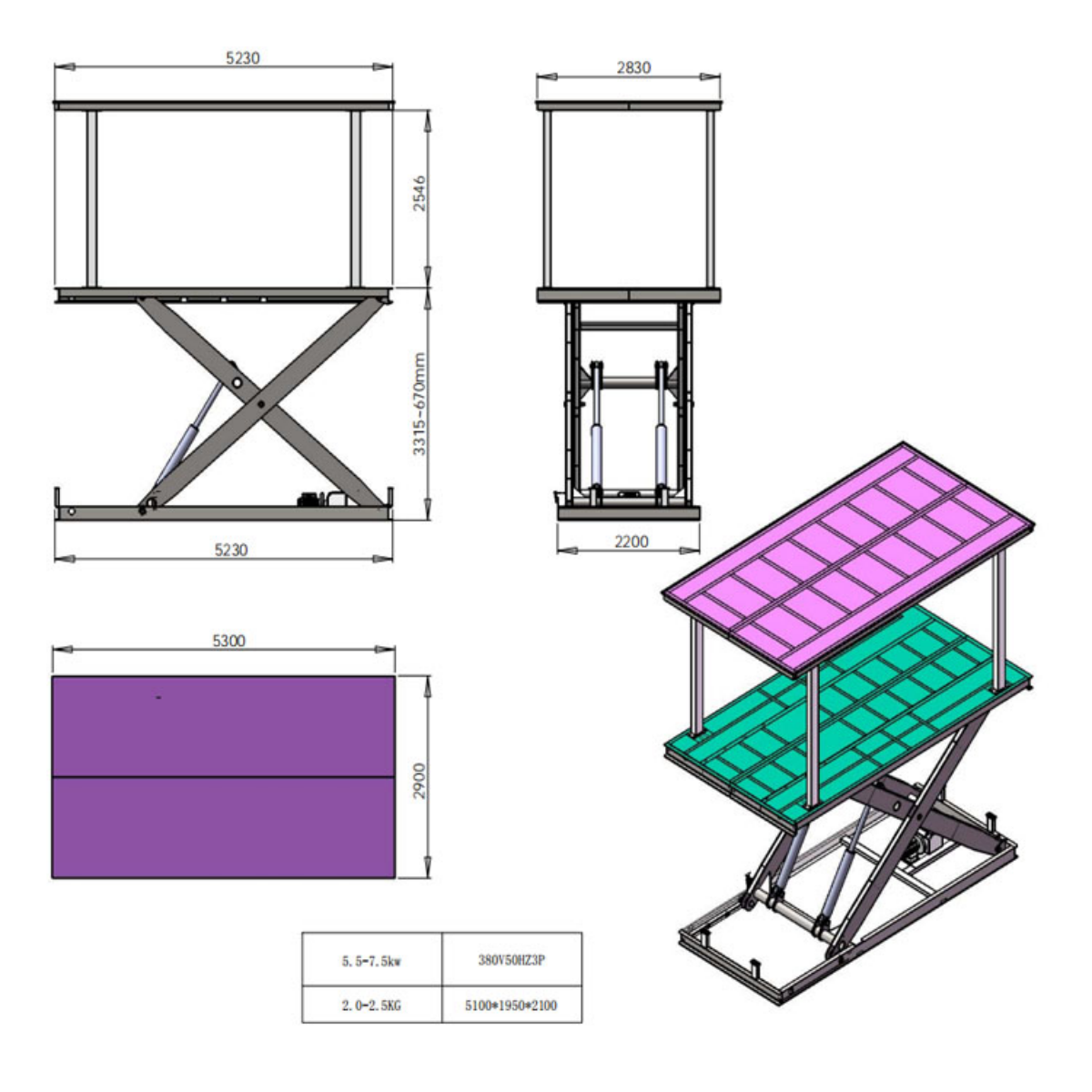

Kev kos duab
Vim li cas thiaj xaiv peb
1. Kev cob qha tsheb nres tsheb nqa Chaw tsim tshuaj paus, Ntau tshaj 10 xyoo dhau los.Peb tau cog lus rau kev tsim, tsim kho tshiab, kho thiab txhim kho ntau yam khoom siv tsheb nres tsheb.
2. 16000+ chaw nres tsheb, 100+ lub teb chaws thiab cheeb tsam.
3. Khoom Nta: Siv cov khoom zoo raw khoom kom ntseeg tau qhov zoo
4. Zoo Zoo: TUV, CE tau ntawv pov thawj.nruj me ntsis tshuaj xyuas txhua tus txheej txheem.Cov kws tshaj lij QC pab neeg los xyuas kom meej qhov zoo.
5. Kev Pabcuam: Kev pabcuam kev tshaj lij thaum lub sijhawm muag khoom ua ntej thiab tomqab muag kev pabcuam customized.
6. Lub Hoobkas: Nws nyob hauv Qingdao, sab hnub tuaj ntug dej hiav txwv ntawm Tuam Tshoj, Kev thauj mus los yooj yim heev.Txhua hnub muaj peev xwm 500 teeb.
